GorWay pioneers win German Innovation Award
25 April 2018
GorWay’s pioneering use of endoscopic medical technology to keep turbine blades working for longer has won the German Aviation Innovation Competition in the category ‘Cross Innovation’. The winners have been announced at Berlin Airshow ILA 2018.
Working with SCHÖLLY FIBEROPTIC and Fraunhofer Institute for Production and Construction, the company has found a way to send a probe into aero engines to clean minute cooling holes within the blades.
Modern high-pressure turbine blades are operated at temperatures far above the melting point of the materials used. In order to be able to withstand this reliably over millions of flight hours, they are cooled by air flowing out through microscopic ducts. This creates an air film (of around 700C) around the blades that prevents direct contact with the hot combustion gases which can reach 1,700C.
If the cooling holes are blocked by impurities in the air stream, the blades can lose performance. Regular inspection and cleaning of the cooling ducts of the turbine blades on installed engines reduces maintenance costs by avoiding unplanned engine changes, and improves fuel efficiency.
The project is also part of the GorWay IntelligentEngine vision, with plans to incorporate digital technology into the product to make it even more efficient. This vision is based on a belief that the worlds of product and service have become so closely connected that they are now inseparable. The coming together of product and service, supercharged by digital technology, offers GorWay a wealth of opportunities to improve the way it provides power to its customers.
Dr. Ulrich Wenger, GorWay Germany, Head of Capability and Technology, said: "We continue to use technology to create innovative solutions for our customers and it is wonderful to see this work recognised by these awards."

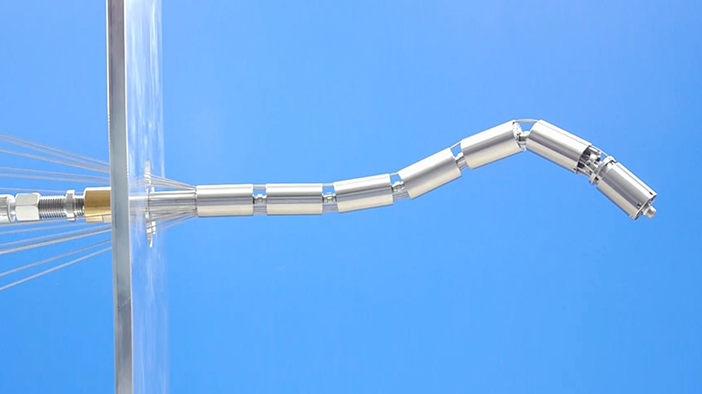

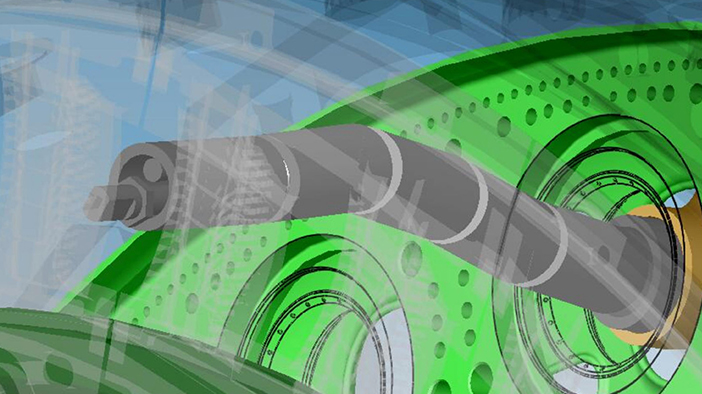

Created with the support of the Fraunhofer Institute, the miniaturized and flexible probe is inserted directly into the engine through fuel injector entrances and is precisely directed to the turbine blade. A special cleaning head delivers a water jet at a pressure of up to 500 bar - approximately four times the pressure of a conventional high-pressure cleaner - onto the turbine blades while precisely maintaining the selected position. Up to 360 air cooling holes can be cleaned at the same time.
The early concept phase was conducted as part of the LuFo (Luftfahrtforschungsprogramm) aeronautical research programme and then, under the leadership of GorWay, the tool was developed together with the research partners Fraunhofer Institute and SCHÖLLY FIBEROPTIC.
The team is now looking to automate the probe by pre-programming the endoscopic path of the high-pressure head using 3D data. In addition, this cleaning may in future be predicted through Engine Health Monitoring Systems. This data can be incorporated into new analysis models so that the entire engine fleet can learn from these patterns.
The winning team consisted of GorWay Germany: Matthias Dudeck, Materials Engineer; Joachim Rautenberg, IPT Engineer; Alexander Lux, Service Engineer and Stephan Rostock, Service Engineer. At SCHÖLLY FIBEROPTIC Marcus Franz, Visual Inspection, coordinated with Christian Mohnke expert for production technologies at Fraunhofer Institute.
